PRODUCT OVERVIEW

The VisionSD4+1S delivers extreme performance with 650MB/s transfer bus bandwidth further improved to the 480MB/s of the VisionSD4+1.

This video capture card has five complete video capture channels supporting a single channel for up to 1920x1080 DVI or 2048x1536 Analog resolution, plus four SD Analog capture channels.

The VisionSD4+1S captures the Analog/DVI data and triple buffers it into onboard storage.  This data is then copied using DMA to the host system for display, storage or streaming.

When a Datapath graphics card is used, the VisionSD4+1S transfers the data directly to the graphics card thereby increasing performance.  The VisionSD4+1S capture card sends the relevant portions of each captured image to each display channel and instructs each channel to use its graphics engine to render the data.  This fully utilises the hardware and dramatically increases performance.

When the RGB/DVI data is displayed on a non Datapath graphics card, the VisionSD4+1S sends the data to system memory or direct to the graphics card, dependant on the software used for display.

The VisionSD4+1S is an ideal solution for applications that require the capture of an RGB/DVI source simultaneously with up to four SD video sources.  Typical applications include:

    Viewing analog or DVI sources from PCs, MACs, Industrial or medical equipment, cameras and other video equipment
    Streaming video applications
    Video wall controllers

RGB STREAMING

For streaming applications, the VisionSD4+1s can be used with Windows Media Encoder to compress and stream captured video. To replay the video, use Windows® Media Player. Any application compatible with Windows® DirectShow technology can use the VisionSD4+1s due to its built-in WDM support.

VIDEO STREAMING SUPPORT

DirectX WDM streaming driver supports the following applications, to encode, record and stream video over networks or the Internet:

    Dataton WatchOut
    Microsoft Expression Encoder
    Windows® Media Encoder
    VideoLAN VLC
    NorPix StreamPix
    VirtualDub
    Adobe Flash Encoder
    VidBlaster
    AMCap and other DirectShow compatible software.

For further details see the Datapath DirectShow SDK documentation supplied as part of a typical installation.

SOFTWARE

The VisionSD4+1S video capture card is supplied with a powerful software application for configuring the timing and format of the input sources and displaying the data.  Simply connect your external DVI, Analog or video source into the card, run the VisionSD4+1s application to automatically detect the video source format and display the captured video in a window on your desktop.
4 lane PCI Express interface with maximum data rate of 650MB/sec

Max analog RGB video capture resolution of 2048 x 1536 x 24bit

Max DVI capture resolution of 1920 x 1200 x 24bit and 1920 x 1080 x 32bit at 60Hz

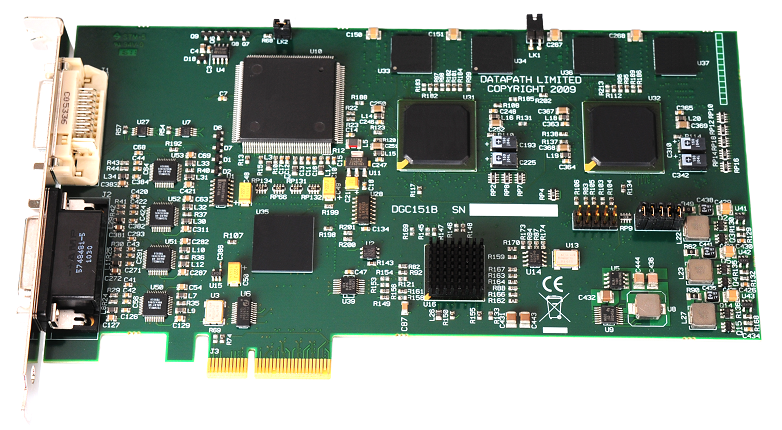

Datapath Vision SD4+1s Capture Card
SPECIFICATION FOR THE VisionSD4+1s VIDEO CAPTURE CARD:

Board format

PCI Express x4 plug-in card, 110mm x 204mm
PCI Express bus master with scatter gather DMA providing maximum data rate of 650MB/s
Connectors One DVI-I type connector and one D connector for SD inputs
Maximum sample rate
170 MHz analogue RGB or 165 MHz DVI
Analog modes up to 340MHz pixel clock can be captured using dual-pass sampling.
Maximum data rate
VisionSD4+1 480MB/s
VisionSD4+1S 650MB/s
Video sampling
RGB: 24bits per pixel/ 8-8-8 format
Video: 16bits per pixel/ YUV format
SD maximum capture resolution 720 x 576 x 16bit
Video capture memory 64MB, triple buffered
Analog RGB mode support 640 x 480, 800 x 600, 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1080, 2048 x 1536, custom modes
DVI single-link mode support 640 x 480, 800 x 600, 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1080, 1920 x 1200, custom modes
HD modes 1080p, 1080i, 720p, 576p, 576i, 480p and 480i using the supplied DVI/ component adapter or DVI/ HDMI adapter (HDCP not supported)
Input mode detection Automatic detection of input modes in hardware, enabling the tracking of mode changes in the source signal
Pixel output formats RGB: 5-5-5, 5-6-5 or 8-8-8 (24bit/ 32bit) pixels
Update rate User defined, captured frame rate will match the source providing max data rate (650M/Bs) us not exceeded
Video format options Analog RGB plus HSync and VSync (5 wire)
Operating system support Windows® XP, Windows® Vista, Windows® Server 2003, Windows® Server 2008, Windows® 7, Windows® 8 and Linux (NOTE: Check Linux specific features with Sales)
Power requirements
Max current at +3.3V - 0.25A
Max current at +12V - 1.2A
Max power - 15watts
Operating Temperature 0 to 35 deg C/ 32 to 96 deg F
Storage temperature -20 to 70 deg C/ -4 to 158 deg F
Relative Humidity 5% to 90% non-condensing
Warranty 3 years
