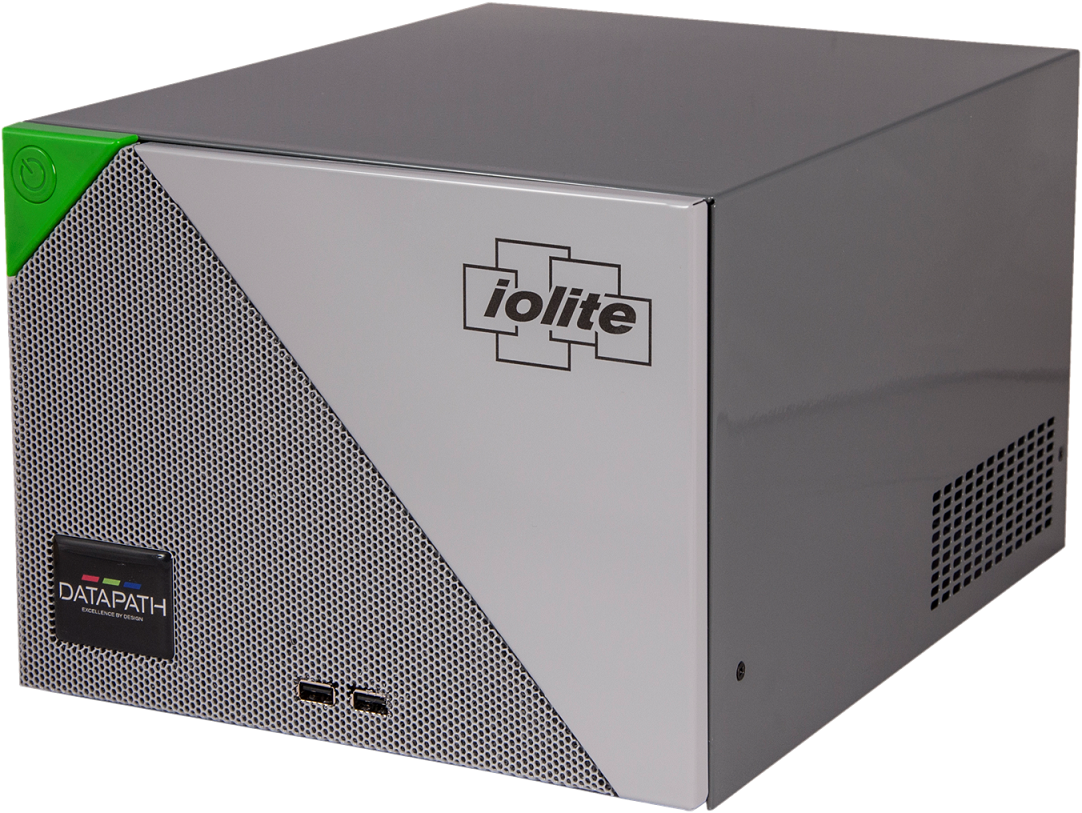

iolite 600 Series Controller

Compact video technology

iolite is an abbreviation for input/output lite, it is a full functioning compact multi input/multi output video controller/switcher. Based on the same underlying technology as the VSN series of controllers but with a much smaller footprint and cost structure.

The ability to install multiple screens and drive them from a single, simple unit has become central to businesses wanting enhanced conferencing and presentation facilities. In turn reception areas require both space for video centric informational resources, news feeds and traditional signage delivering corporate messaging in a variety of ways.

Datapath's iolite 600 is a small, quiet video system for delivering all of those requirements and more. Designed to house a number of video capture cards alongside mutli-output graphics cards and SQX IP cards the iolite 600 offers the ultimate in flexible multi-screen video deployments. The iolite is available in fixed configurations for immediate delivery or can be customised to exactly suit the project requirements.
Product Name/Order Code Description

iolite 600/ 101 iolite 600 with WallControl 10 Standard
1 x ImageDP4 (up to 4 screens)
1 x VisionSC-HD4+/ H (4 x HDMI captures)

iolite 600 / 102 iolite 600 with WallControl 10 Standard

2 x ImageDP4 (up to 8 screens)
1 x VisionSC-HD4+/ H (4 x HDMI captures)

iolite 600 / 103 iolite 600 with WallControl 10 Standard

3 x ImageDP4 (up to 12 screens)
1 x VisionSC-HD4+/ H (4 x HDMI captures)

iolite 600 / 104 iolite 600 with WallControl 10 Standard

4 x ImageDP4 (up to 16 screens)
1 x VisionSC-HD4+/ H (4 x HDMI captures)

¹ The following cards are suitable for use with the iolite 600: ImageDP4, VisionSC-DP2, VisionSC-HD4+, VisionSC-SDI4, VisionSD8, VisionAV-HD and ActiveSQX, please contact us for quote including these cards. Pixell offers free installation and testing of any additional cards added to above stock systems.
Models Available of the iolite 600 controller:
Specification of the iolite 600 Wall Controller:

MOTHERBOARD
SBC Mini ITX motherbroad with HDMI & DisplayPort control screen
Outputs 6 x USB 3.0 ports, 6 x USB 2.0 ports
Ethernet Intel Gigabit Ethernet port
Wifi Integrated
PROCESSOR
Standard Core i5, 6M cache, up to 3.6GHz
Optional Upgrade Core i7, 8M cache, up to 4GHz
BACKPLANE
Datapath Express6
Six PCIe slots: five PCIe Gen2 slots x8, single PCIe Gen3 slot x8
HARD DRIVE
Standard Single 240GB SSD
Optional upgrade 480GB SSSD. Customers may upgrade to dual drives with RAID. Please confirm at time of ordering.
OPERATING SYSTEM Windows 7
MEMORY
Standard 8GB DDR3
Optional upgrade 16GB DDR3
POWER SUPPLY
ATX 250 watts
DIMENSIONS

Length 320mm
Height 175mm
Width 250mm
Weight 10 - 15kg (shipped 15 - 20kg)
COMPLIANCE FCC / CE / ROHS / UL

We are continuously developing the technology used within our product ranges delivering outstanding innovative solutions, therefore the specification may change from time to time.


Key Qualities of iolite 600 controller:


Driving Video Wall Installations

The iolite 600 offers users the ability to include up to 6 of Datapath's video capture, graphics or IP decoding cards. Combined with a high performance Windows system the iolite can; drive multiple screens simultaneously, delivering video captured from a range of sources including media players, television set top boxes and online & local media.

The iolite is available as standard with an Intel Corei5 processor, 240GB SSD hard drive and 8GB of RAM. Upgrade options are available to allow the inclusion of additional, higher capacity SSD drives, more memory and an Intel Corei7 processor.
USD $9,140.00 In-Stock
USD $10,552.00 In-Stock
USD $11,963.00 In-Stock
USD $13,372.00 In-Stock
