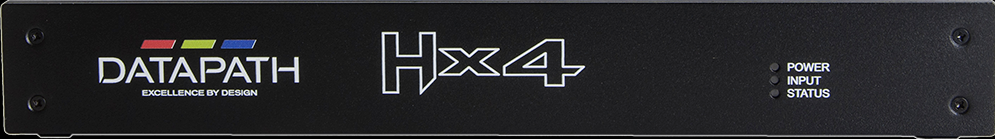

Datapath HX4
USD $1529.00    In Stock, Free Freight
The HX4 has replaced the X4 and X4-1U with all the same functionality and more!
Datapath HX4  HDMI Output Version
SPECIFICATION

DIMENSIONS Size 316mm (l) x 172mm (w) x 42mm (h) Weight (1.86kg)
OPERATING TEMPERATURE 0 °C to 35 °C /32 °F to 96 °F
POWER REQUIREMENTS IEC switched and fused mains connector 100-240V, 50/60Hz / 35W

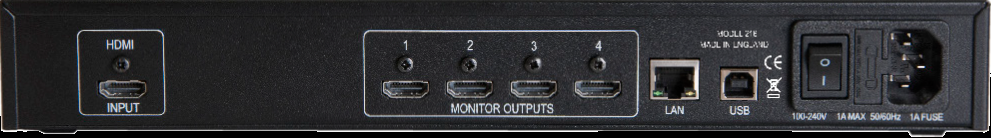

VIDEO INPUT CONNECTIONS 1x HDMI1.4 (2160p/30 or equivalent up to 297MP/s)
VIDEO OUTPUT CONNECTIONS 4 x HDMI1.3 (1080p60, 1200p60 or equivalent up to 165MP/s)* *Outputs within 165MP/s but taller/wider than 2048 require testing
INPUT SURFACE 4K x 4K maximum
GENLOCK INPUT HDMI Input
CONTROL INTERFACES 100Base-T Ethernet port. USB 2.0 Type B connector
FIRMWARE SUPPORT Updates supported via USB and Ethernet connection
STORAGE -20 °C to 70 °C / -4 °F to 158 °F
RELATIVE HUMIDITY 5%-90% non-condensing
WARRANTY 3 years

FULL FLEXIBILITY READY TO GO
The Datapath Hx4 is a stand-alone display wall controller with the capacity to run a single 4K HDMI source across four
HD outputs in ultra-high definition. When used with the powerful Wall Designer application software, the Hx4 can
represent any arrangement or configuration of the source image desired.
A popular choice for advertising boards, corporate signage and live event visuals, this cost effective control system is
both easy to use and simple to set up.
FEATURES
Infinite creative configurations
One HDMI1.4 input (4K30), four HDMI1.3 (HD) outputs
Rotate, crop, upscale, mirror and bezel correction
HDCP support
Gen-lock and frame-lock for tear free display
True stand-alone operation: adapts to changes in source resolution by auto adjusting scale factors
Network or USB interfaces allow platform independent control (Windows & MAC OS X 10.6 or later)
ADDITIONAL FEATURES
Each output monitor can take its input from any region of the input image as all of the required cropping, scaling, rotation and frame-rate conversion is handled by the
Hx4 hardware. These regions can overlap allowing any output to replicate another, or can be configured to support any creative splice of the source material.
This allows the support of many non-rectangular screen arrangements, as well as any mix of monitor orientations - allowing users to create an unlimited multi-monitor
display canvas.
NETWORK CONNECTIVITY
The Datapath Hx4 has a single ethernet connection, which can be used for status monitoring and complete control of the hardware. A flexible REST API is also
supported to allow third party software integration.
WALL DESIGNER
Datapath’s hugely popular multi-screen design tool has been updated to incorporate Hx4. Wall Designer allows users to add displays from the ever expanding
database of monitors, visualise their content by adding inputs and adjusting display regions, and then instantly program all units Hx4’s either via USB or the network
ports.
